Microsoft Entra ID Setup (Formerly Microsoft Azure Active Directory)



The following instructions will help you successfully integrate Microsoft Entra ID with your Asset Panda account.



NOTE: You will be copying and pasting values between Azure and Asset Panda during this integration. It is recommended that you paste all values into a text (.txt) file so you do not lose them in the event of a system timeout.



Login to Accounts

Asset Panda

1. Open a new tab, and then navigate to Asset Panda at https://login.assetpanda.com.

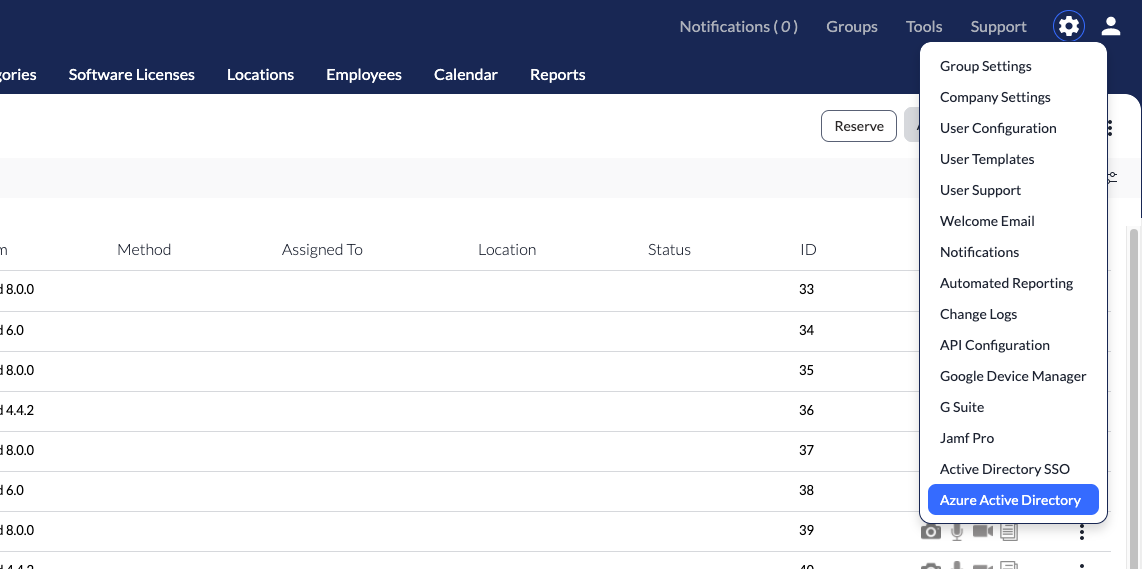

2. Log in to your account, click the Settings icon, and then select Microsoft Entra ID.

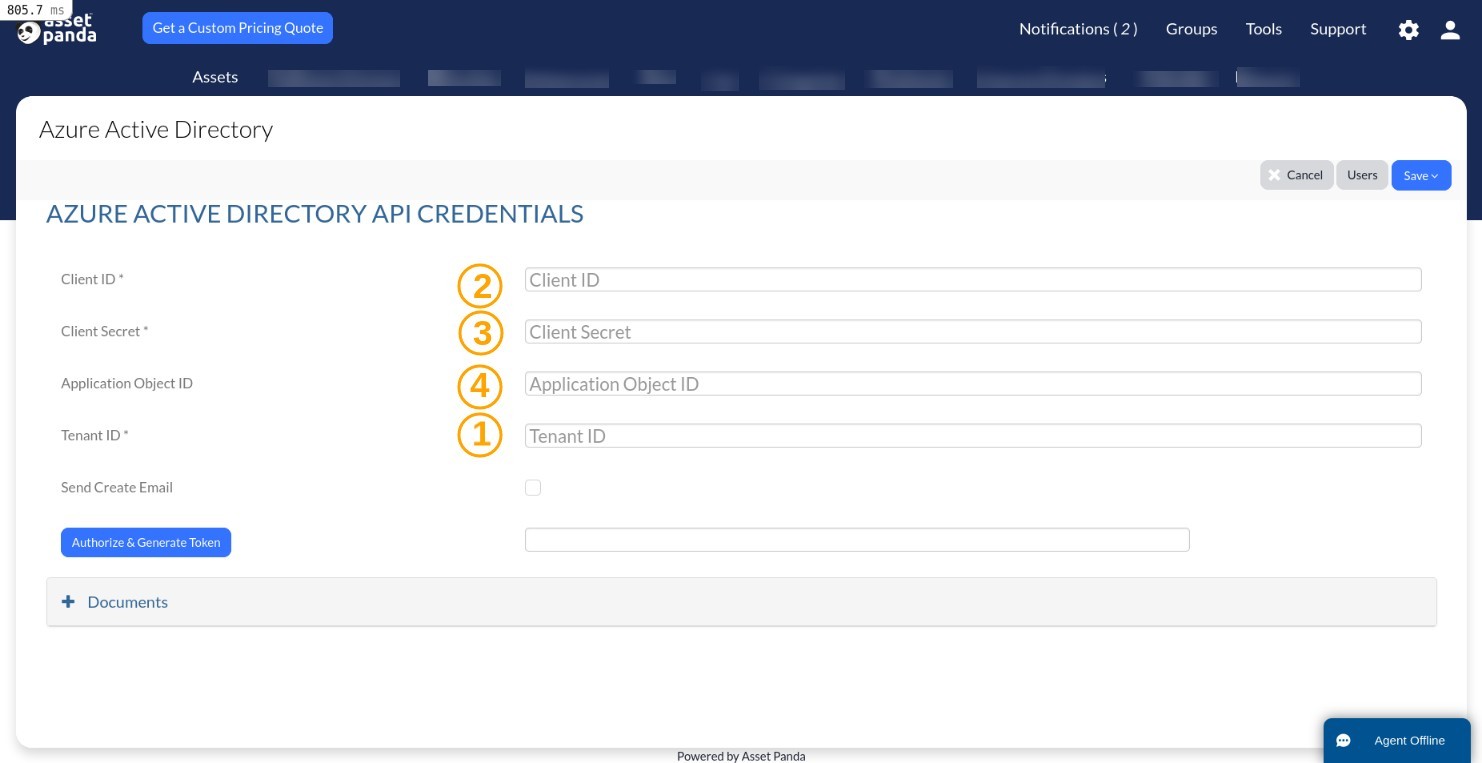

3. The Microsoft Entra ID API Credentials page displays. Keep this page and tab open, as you will refer to it again throughout the following steps.





Microsoft Entra ID



1. Open a second tab, and then navigate to the Microsoft Azure Portal at https://portal.azure.com.

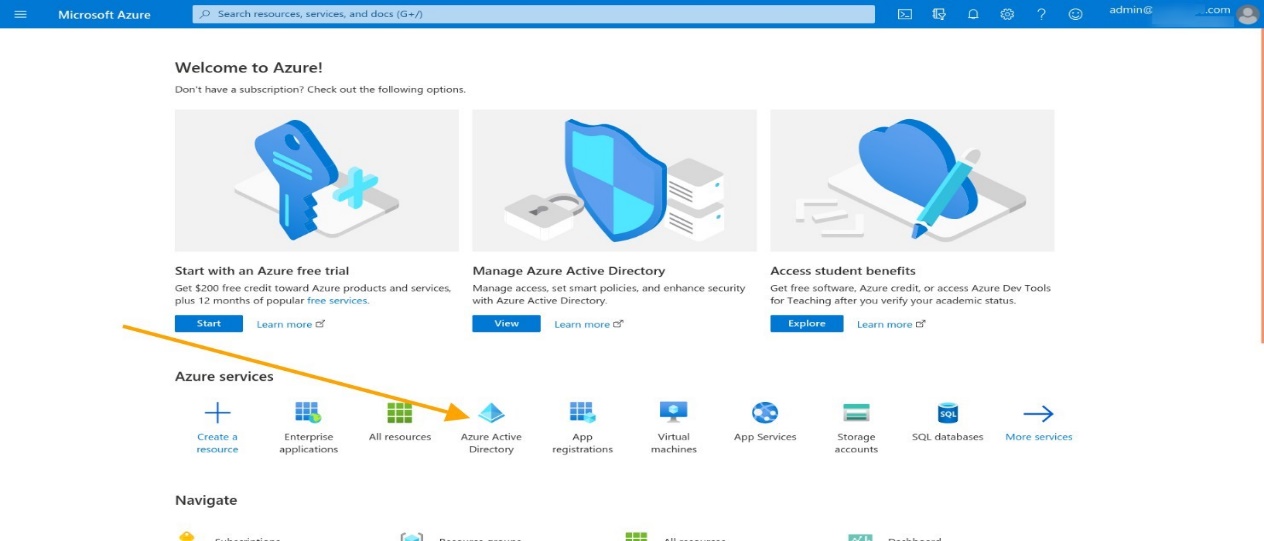

2. Log into your account, and then click Microsoft Entra ID.









Create Tenant



You must first create a tenant within Microsoft Azure. If you have existing tenant, skip to the View Tenant section. To create a tenant:

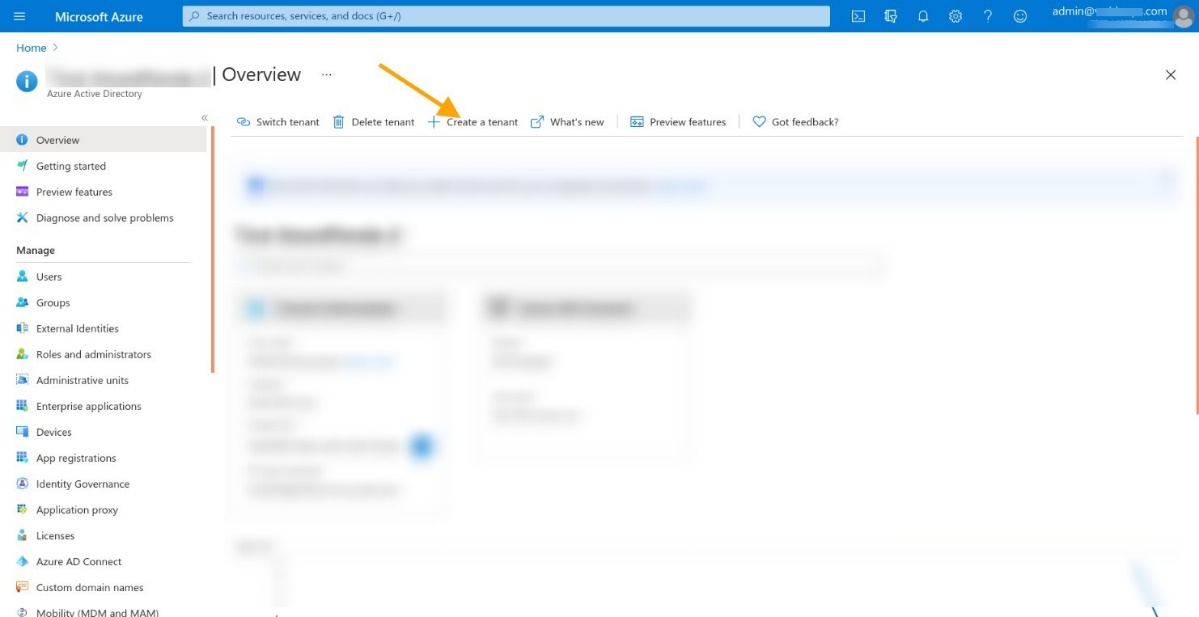

1. Select Create a tenant.

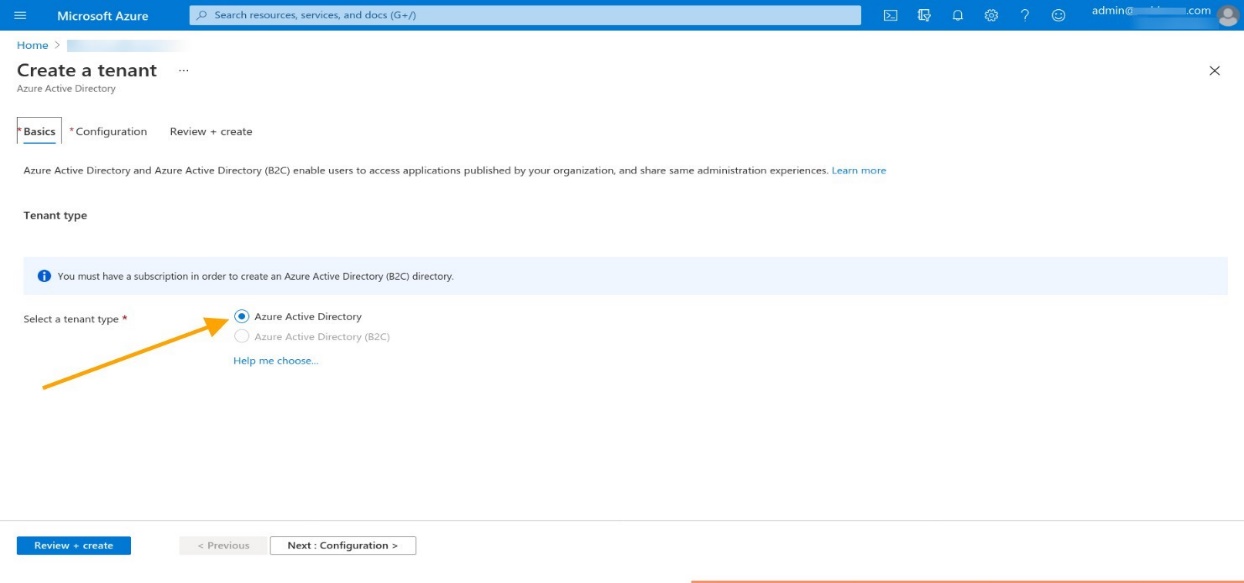

2. Select Microsoft Entra ID.







1. Click the Next : Configuration button.

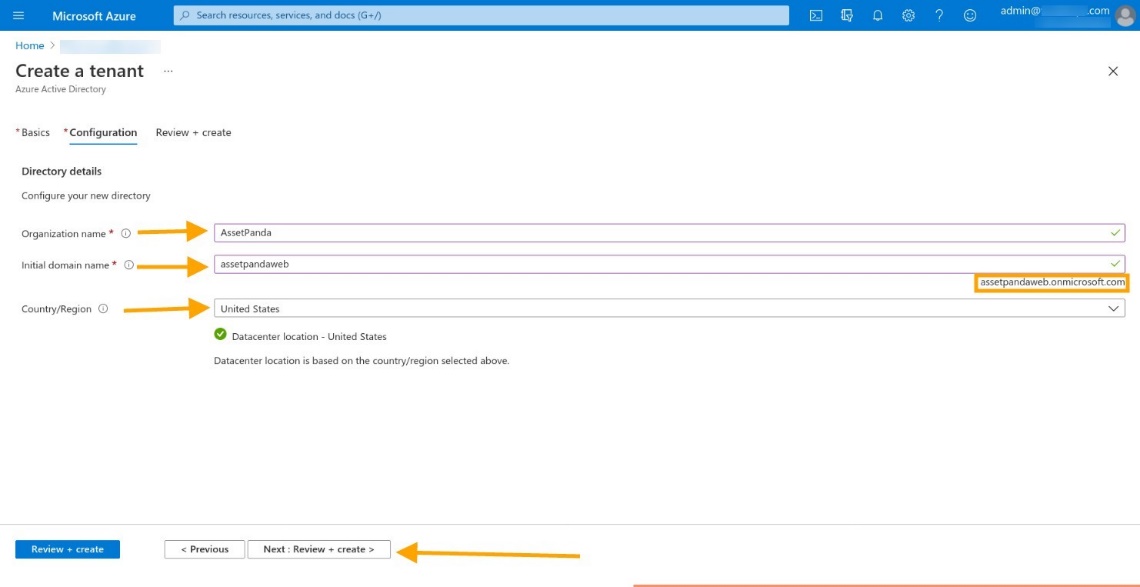

2. Enter your organization-specific information into the following fields:

• • Organization name
  • Initial domain name
  • Country/Region

1. Click the Next : Review + create button.

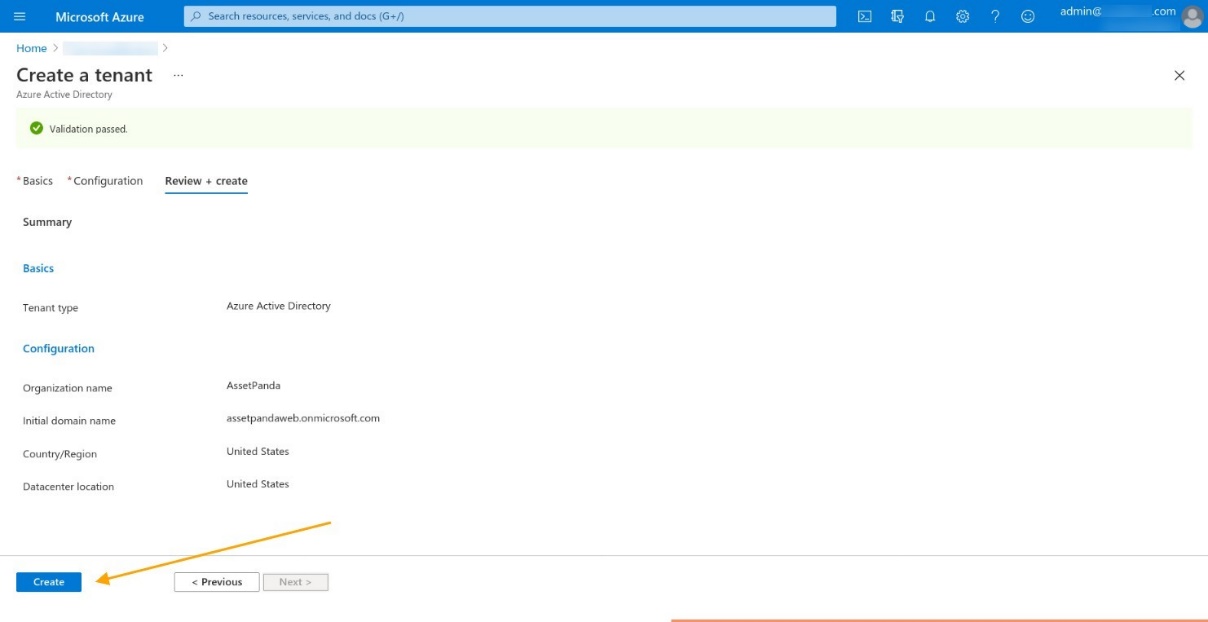

2. Click Create.

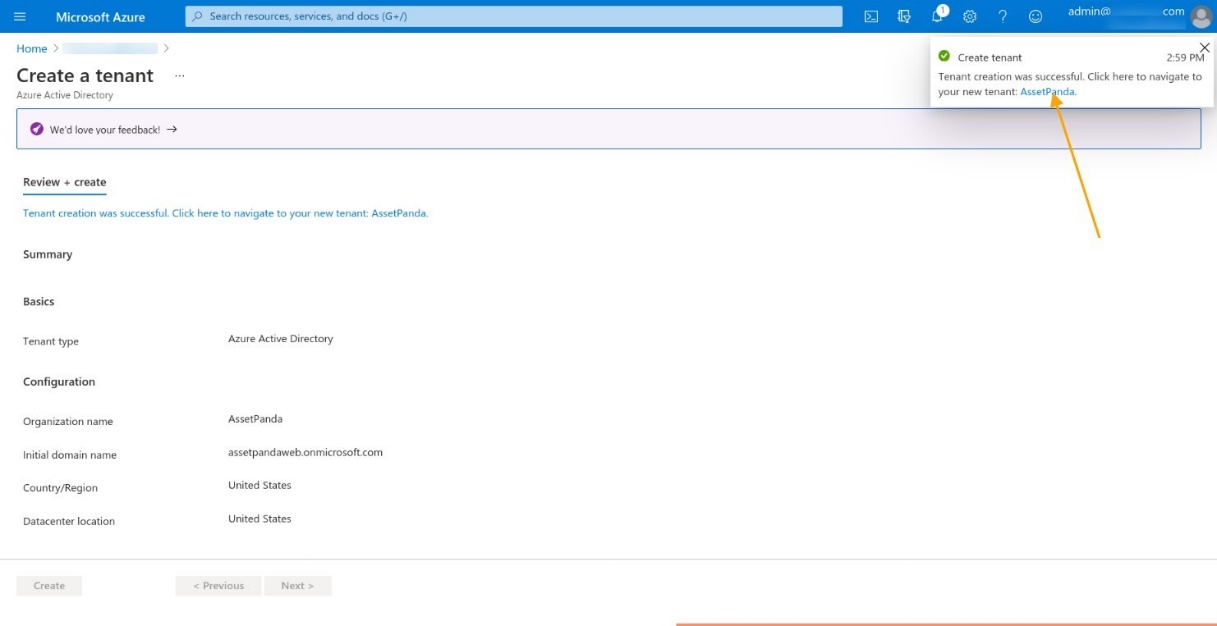

You will receive a success message once the tenant is successfully created.

NOTE: This process may take a while.









View Tenant



1. Navigate back to or log into your Azure Account. (If you’re already logged in, click Home, located within in the top, left corner of your screen.)
2. Select Microsoft Entra ID.







   Your default Tenant Information displays.

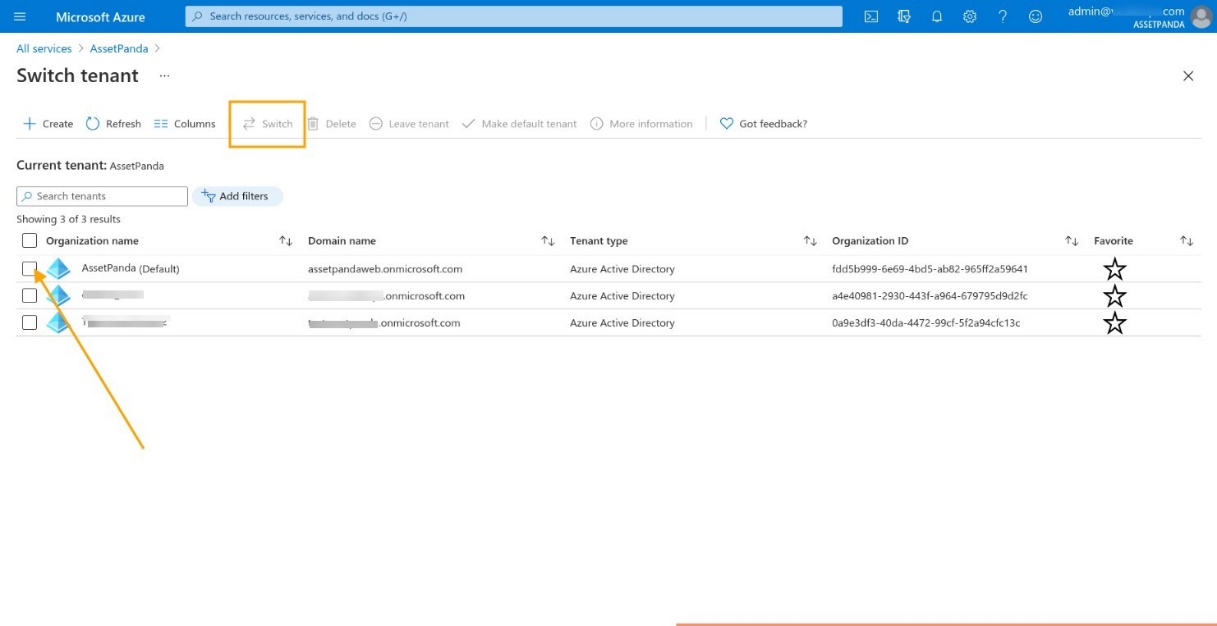

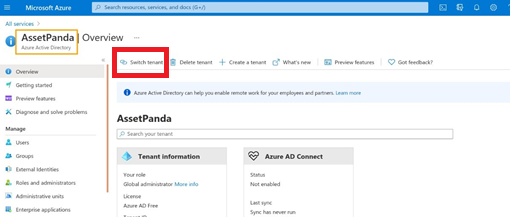

3. Click Switch Tenant if you would like to use a different tenant, and then select a tenant from the list.







4. Click Switch.

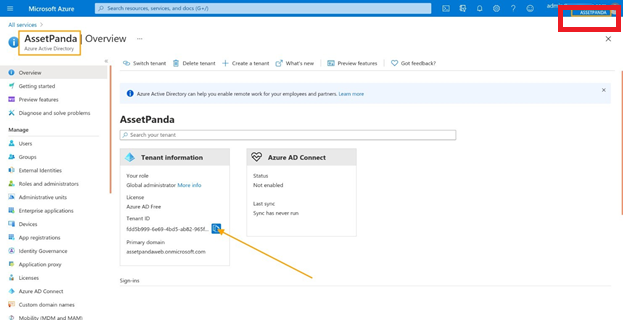

5. Verify the tenant name (located in the top, right corner below your email id).

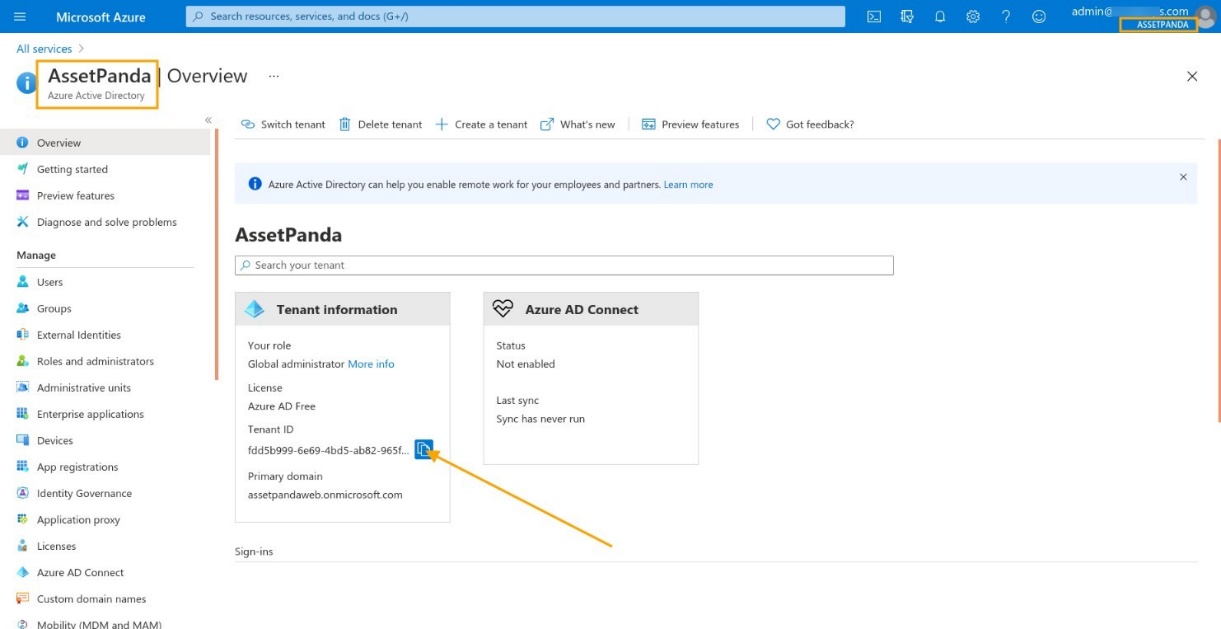

6. Click the copy icon to copy the Tenant ID.








   ‎

7. Navigate back to Asset Panda, and then paste the Tenant ID into the Tenant ID field (#1).







App Registration

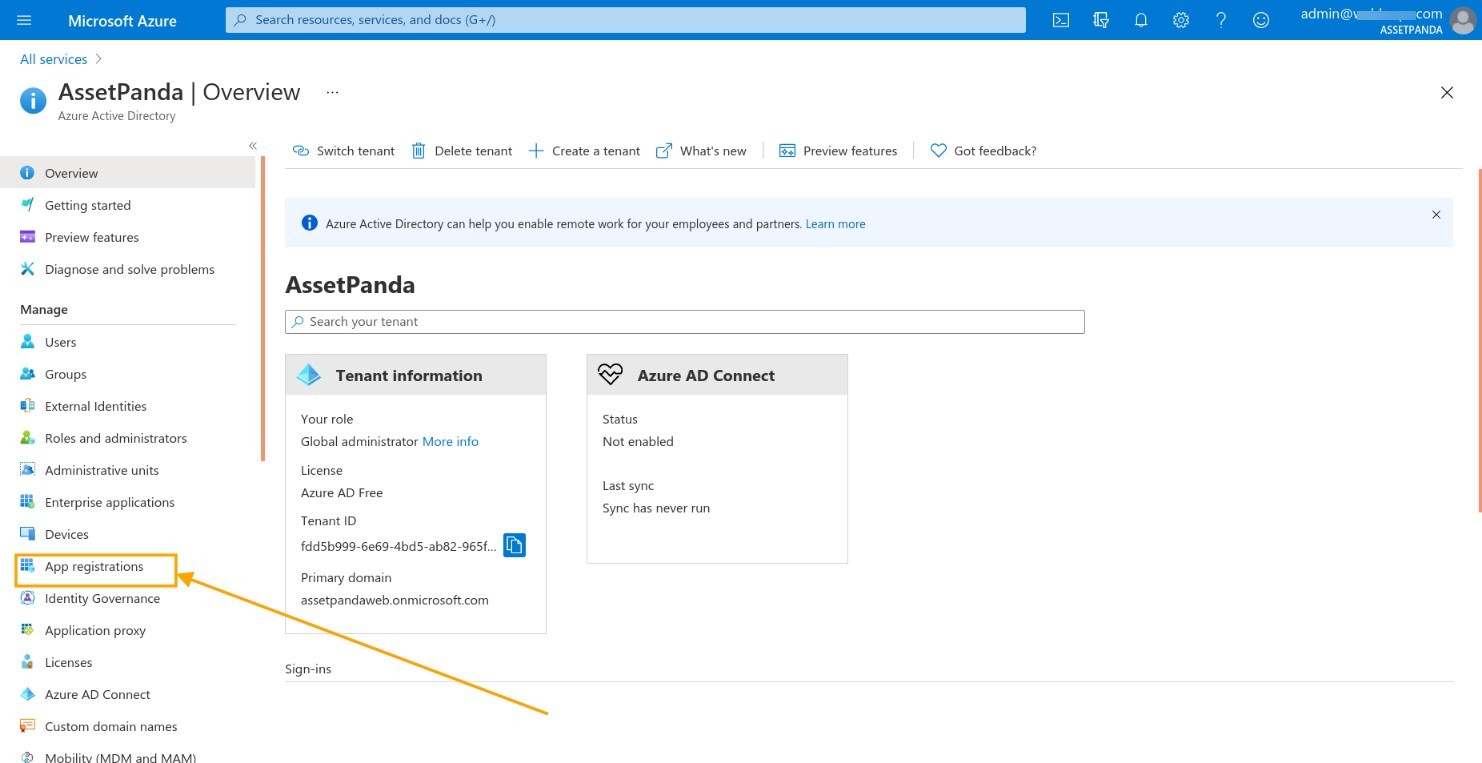

1. Navigate back to your Azure account, and then click App registration.






   ‎

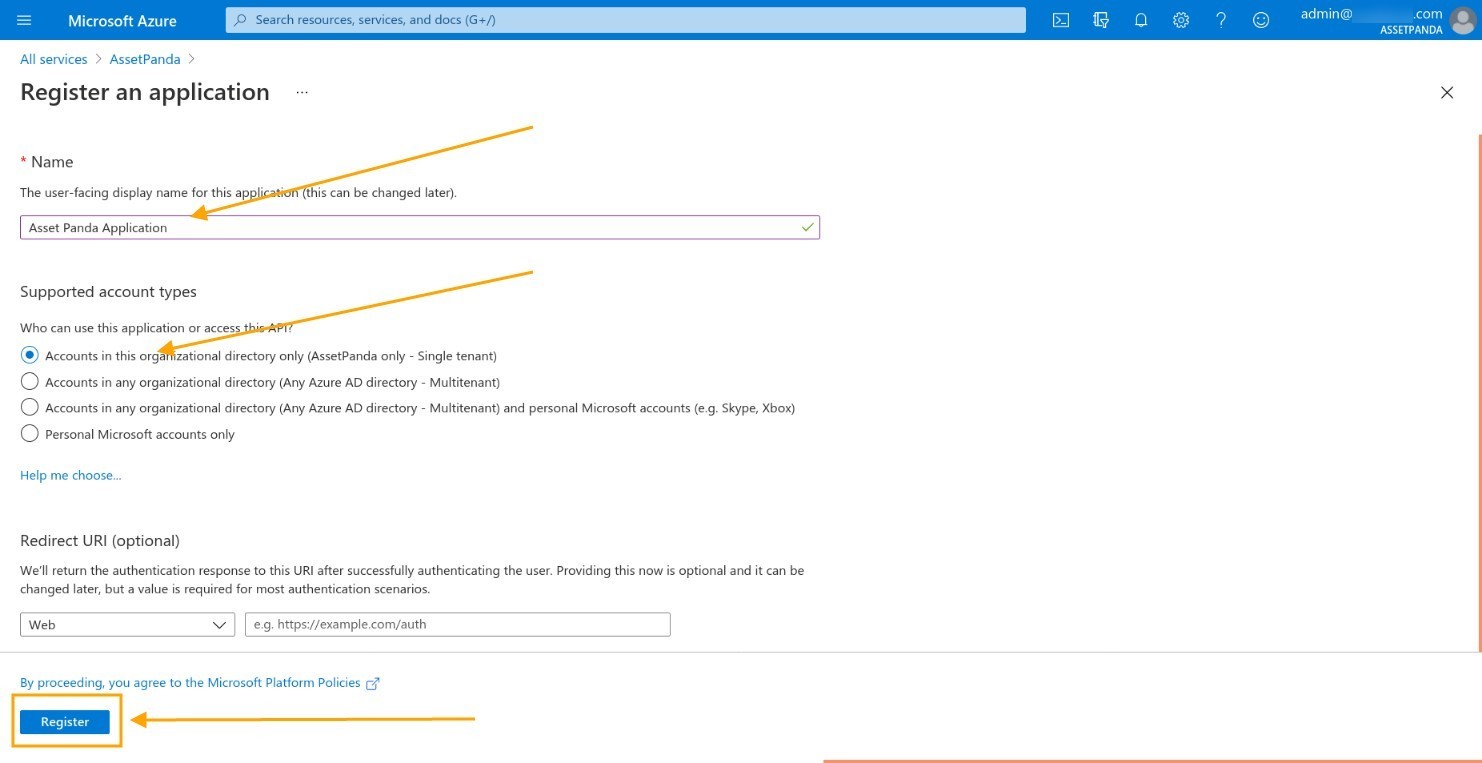

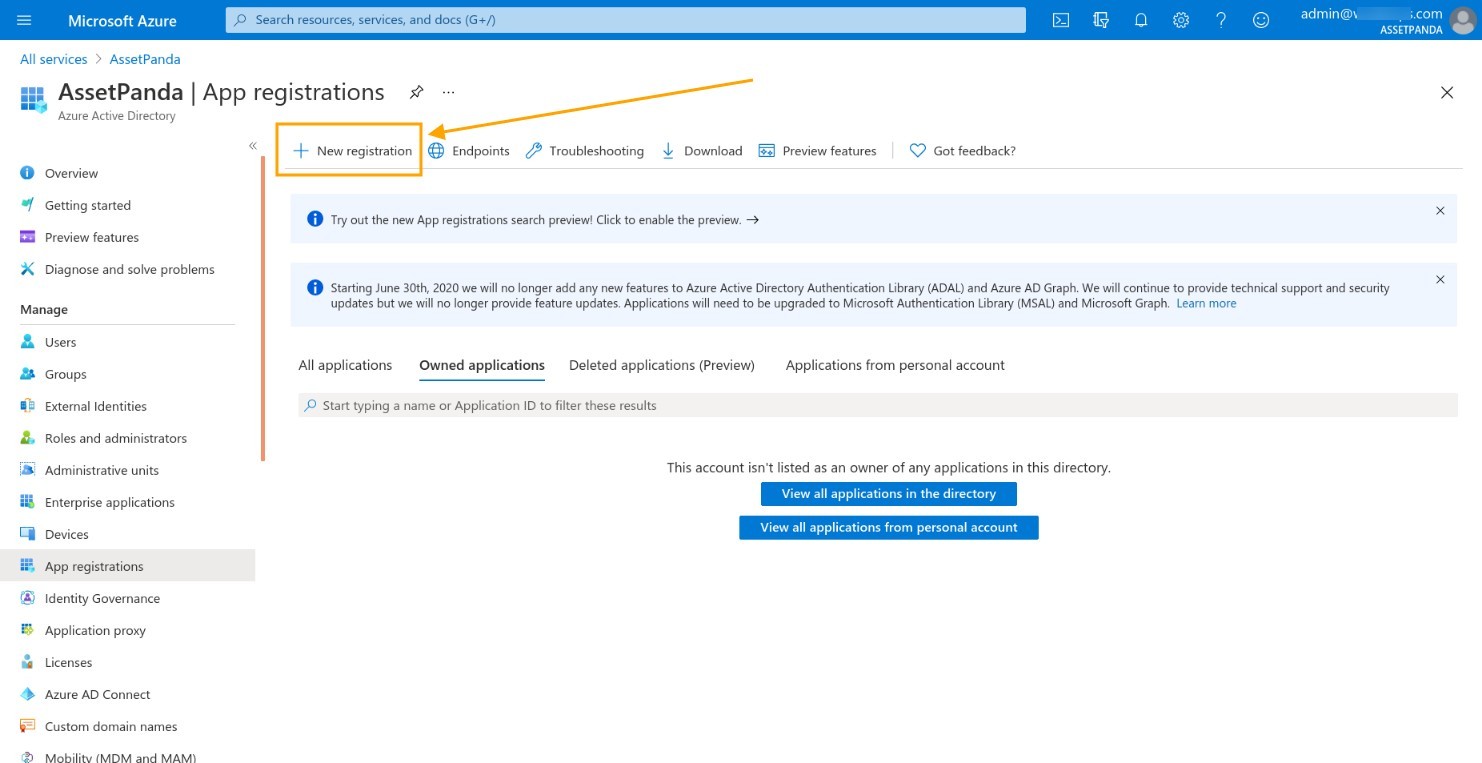

2. Click New registration.







3. Complete the following fields:

• • Name
  • Supported account types – Select Accounts in this organizational directory only (AssetPanda only – Single tenant)

1. Click Register.








   ‎

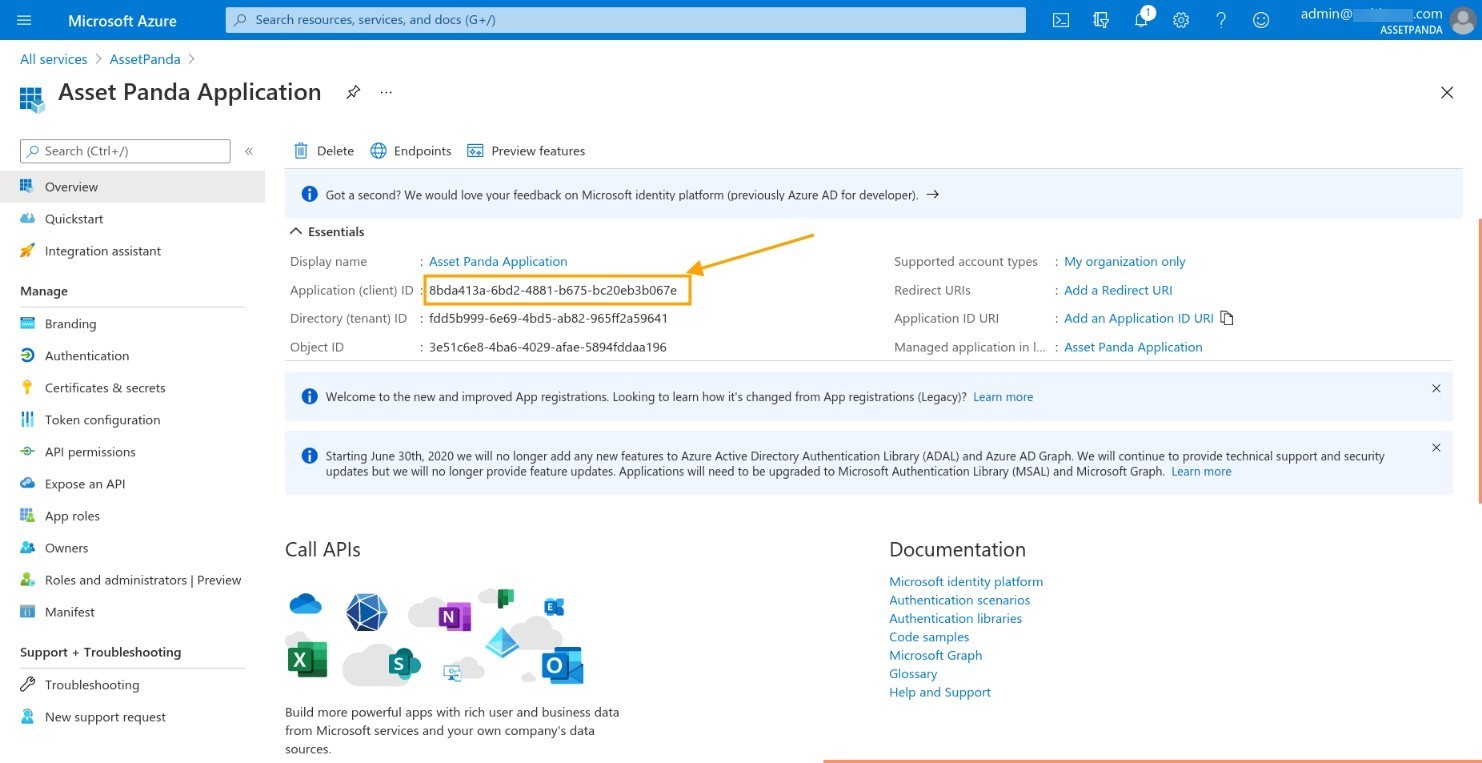

2. Copy the Application (client ID).







3. Navigate back to your Asset Panda account, and then paste the Application (client ID) into the Client ID field (#2).





‎

Add API Permissions



Complete the following steps to add your API permissions.



1. Navigate back to your Azure account.

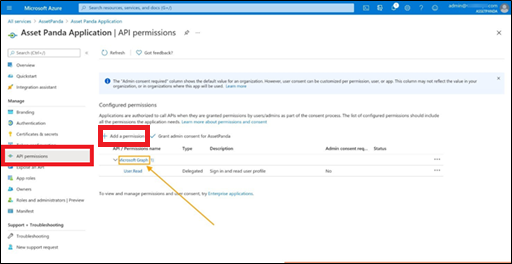

2. Click API Permissions.

   The User Read permission should already be contained within the list.



3. From the Configured permissions section, select Add a permission.

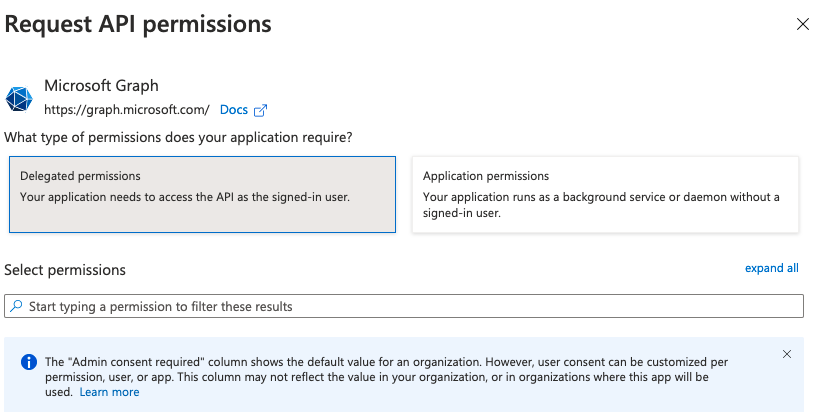

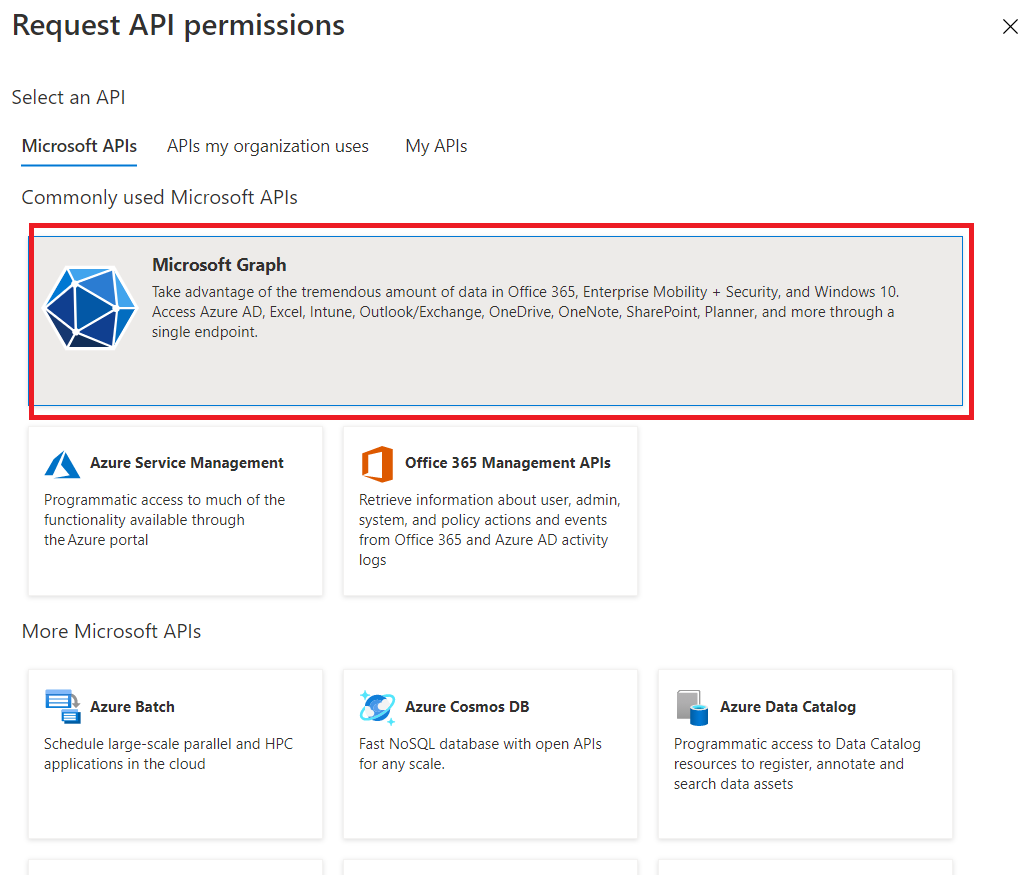

4. From the Request API permissions page, select Microsoft Graph to add more permissions.









5. Select Delegated permissions.

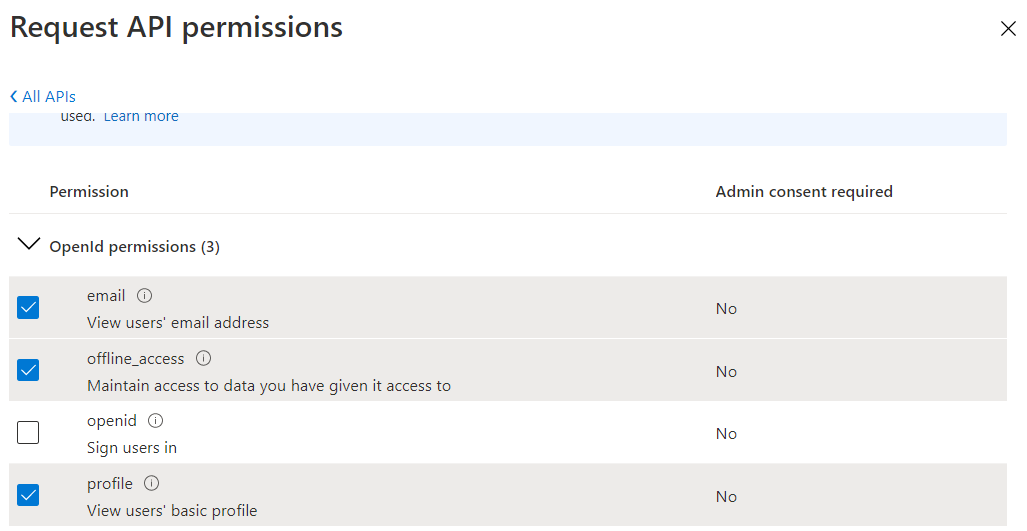

6. Expand OpenId permissions, and then select the following values:

• • email
  • profile
  • offline_access





1. Click Add Permissions.

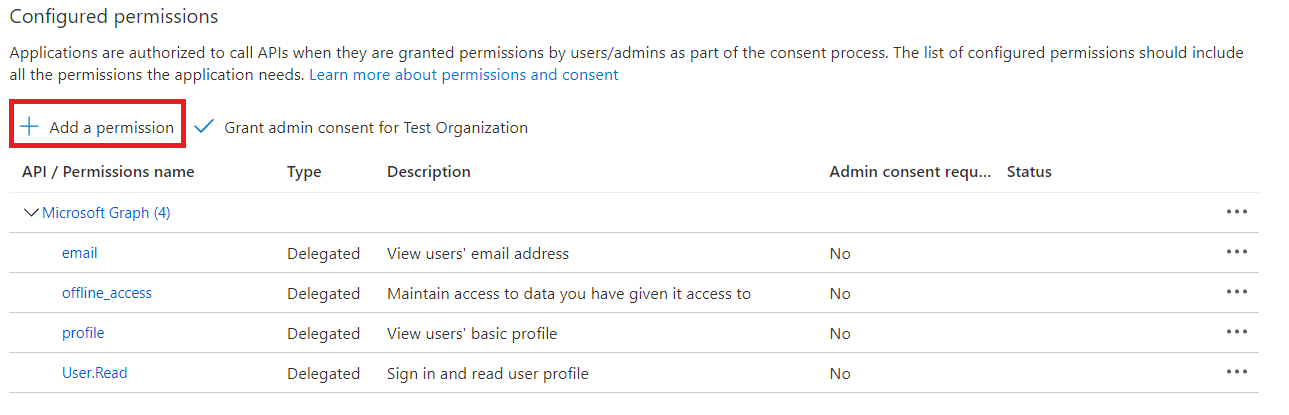

   The Configured permissions section displays again.



2. Click Add a permission to add more permissions.

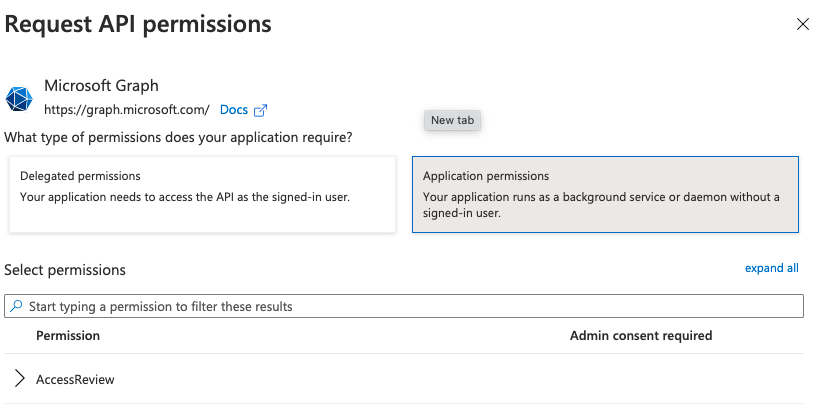

3. Select Microsoft Graph again, and then select Application permissions.







4. Navigate to Group, expand the menu, and then select:
   • Group.Read.All
5. Navigate to Directory, expand the menu, and then select:
   • Read.All
6. Navigate to User, expand the menu, and then select:
   • Read.All
7. Navigate to Delegated permission, expand the menu, and then select:
   • User.ReadBasic.All
8. Navigate to Application, expand the menu, and then select:
   • Application.Read.All

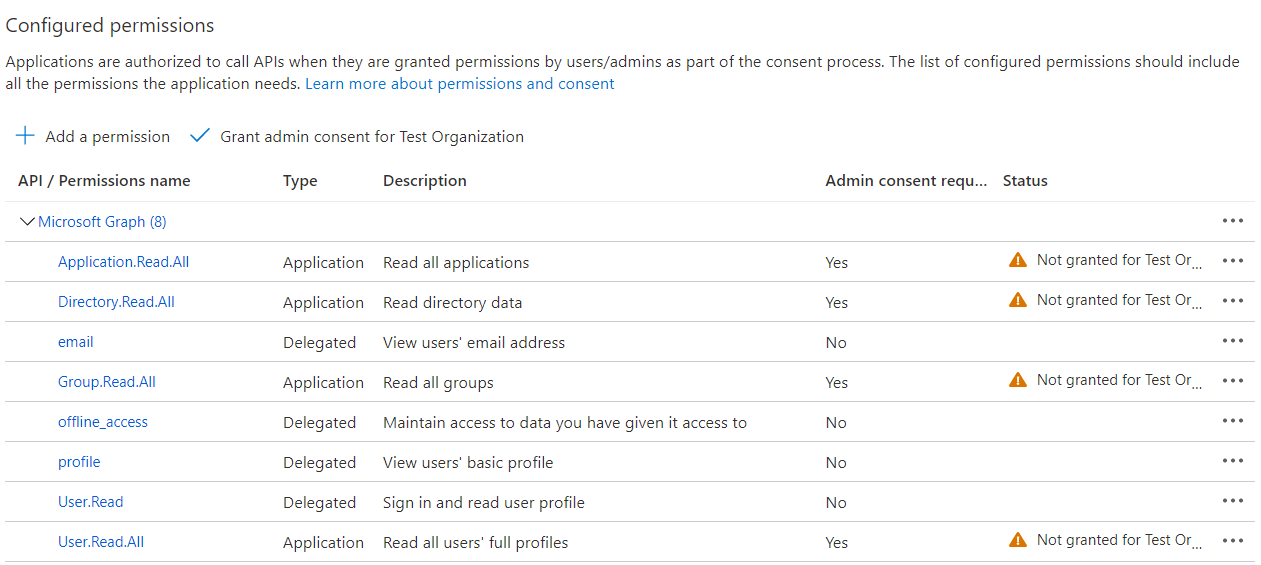

9. Click Update permissions. A list of your selected permissions should display, as shown below.











10. Click Grant admin consent for Default Directory to confirm that all permissions have admin consent.

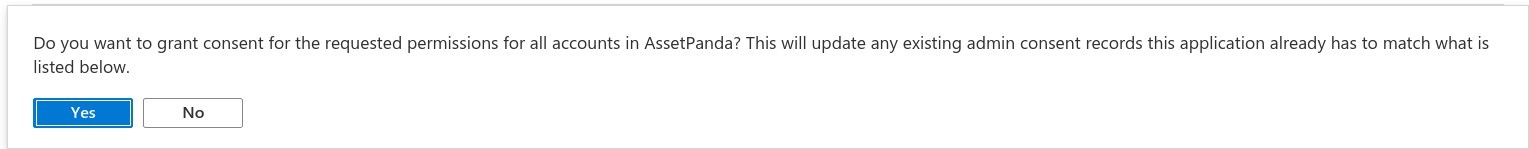

11. Click Yes to grant consent.

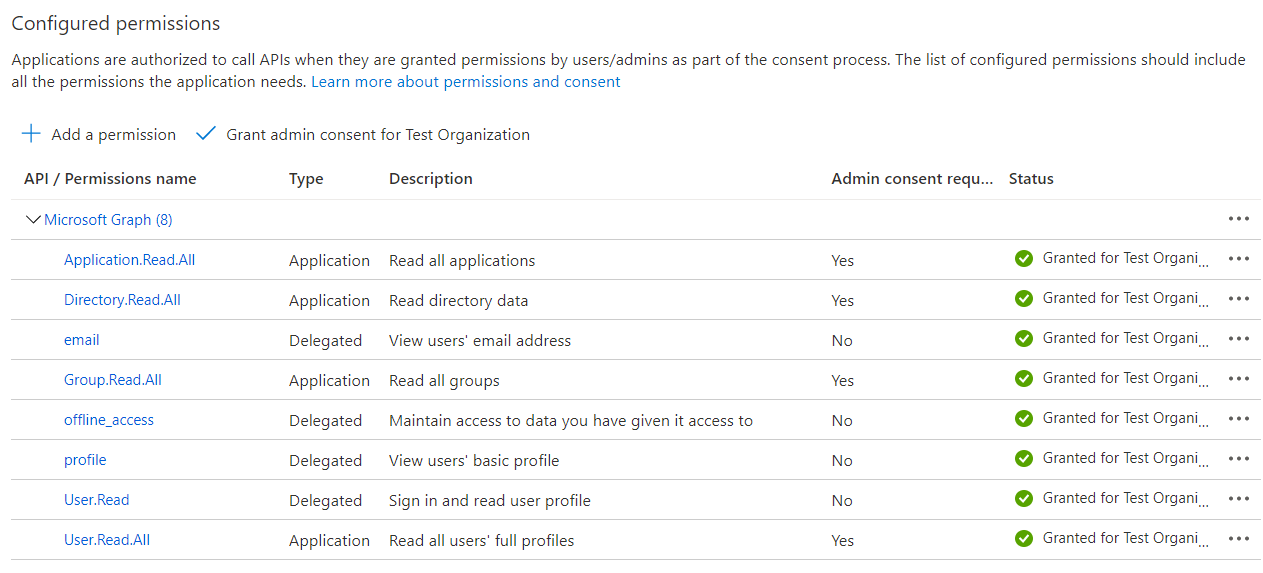

12. Confirm that the Status column displays the granted, admin permissions.















‎

Create Application Secret



This section will guide you through the steps of creating an application secret that will be used within Asset Panda.



1. Click Certificates & secrets.

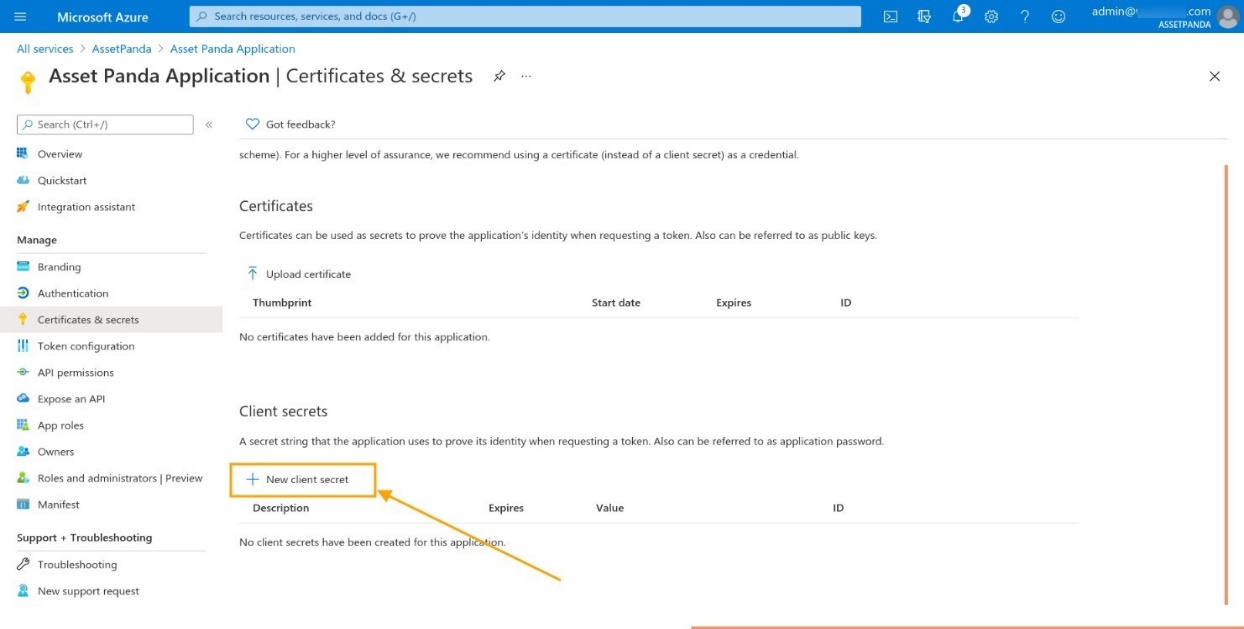

2. Click New client secret.







3. Enter the following details within the Client secrets window:

• • Description
  • Expires - Select the maximum expiration option.

1. Click Add.

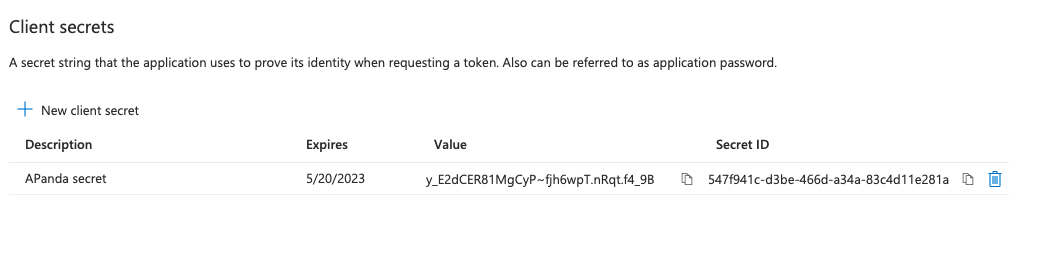

2. Copy the Value shown on your screen. You will not be able to do this again after this step.







3. Navigate back to your Asset Panda window, and then paste the Value within the Client Secret field (#3).









Enterprise Application



To enable Asset Panda to sync with Active Directory users, you must first enable the application within Azure.



1. Navigate back to your Azure account.

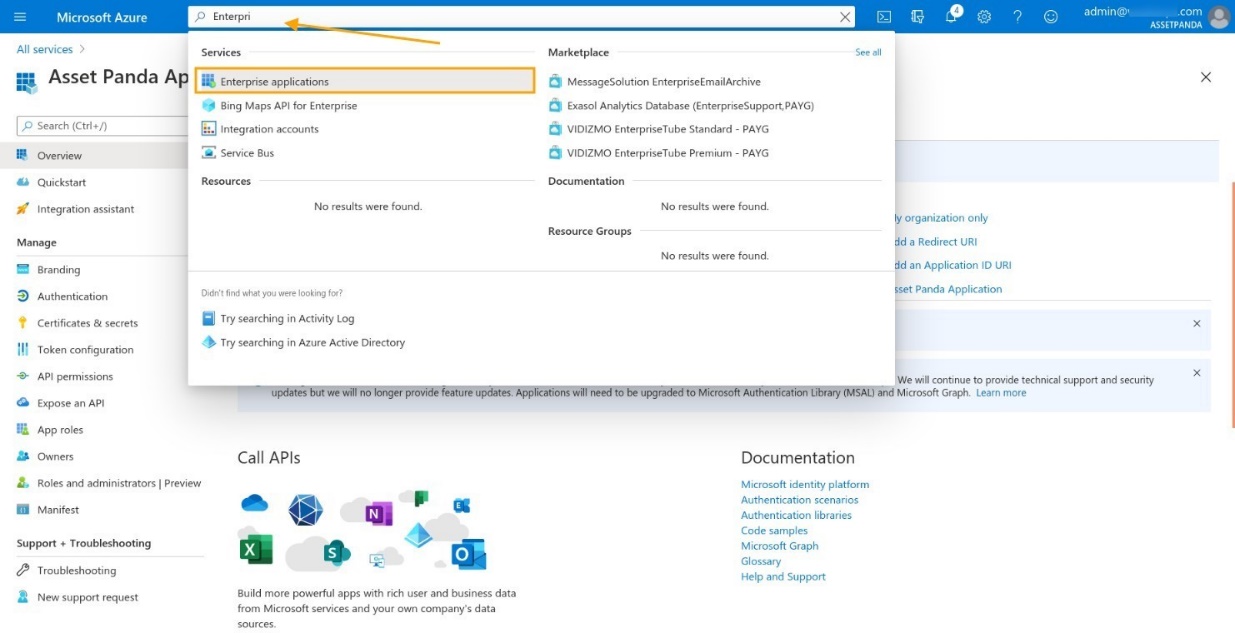

2. Begin to type Enterprise within the Search box, and then select Enterprise Applications.

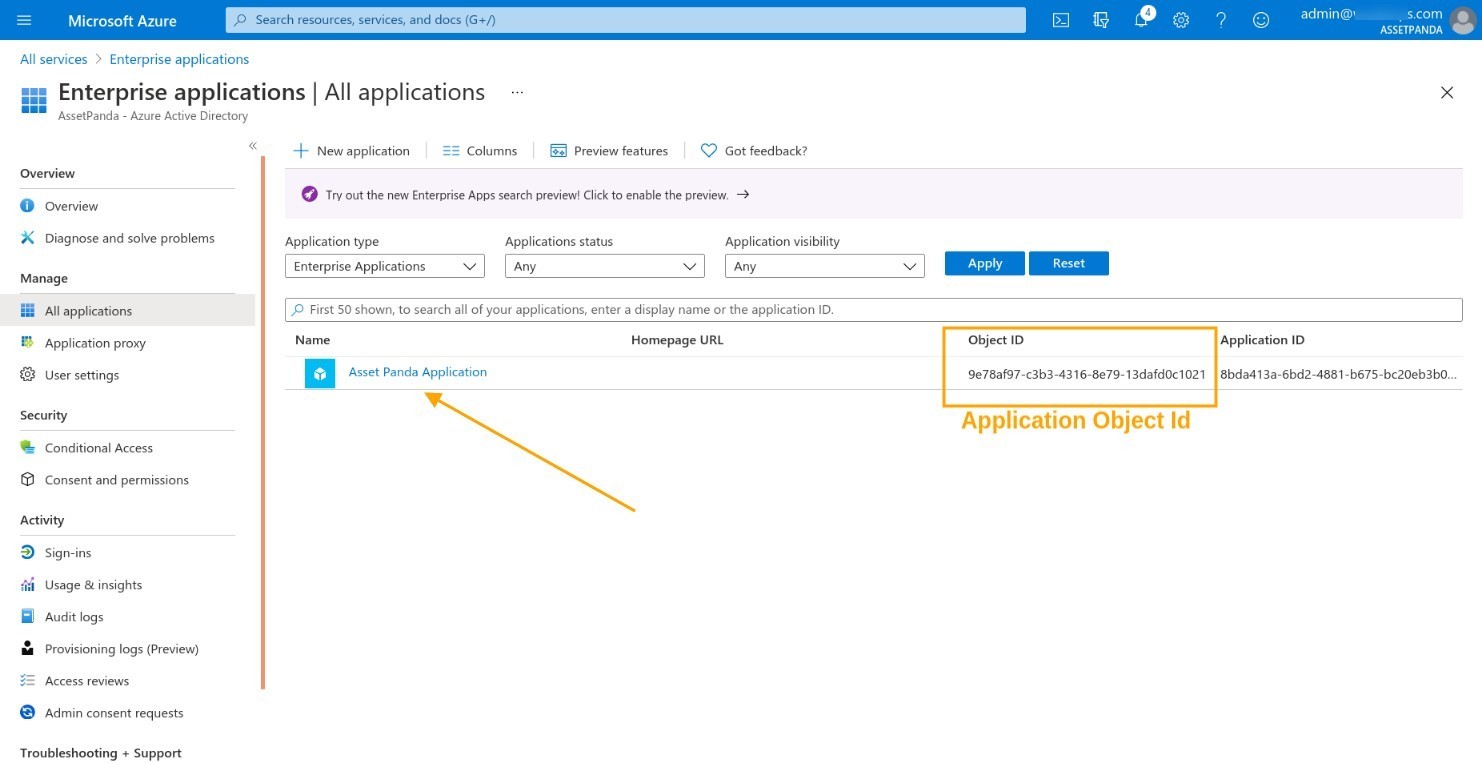

3. Locate your application, and then copy the Object ID.









4. Navigate back to your Asset Panda account, and then paste the Object ID within the Application Object ID field (#4).







Final Steps



The following fields should now contain information from the previous steps:

• Client ID
• Client Secret
• Application Object ID
• Tenant ID



To complete the setup process:



1. Click Authorize & Generate Token.







2. Click Save.



Microsoft Entra ID is now ready to use with your account. You can now copy users, create field maps, and set schedules.







Mapped Fields



Complete the steps in this section to map (and sync) to specific groups.

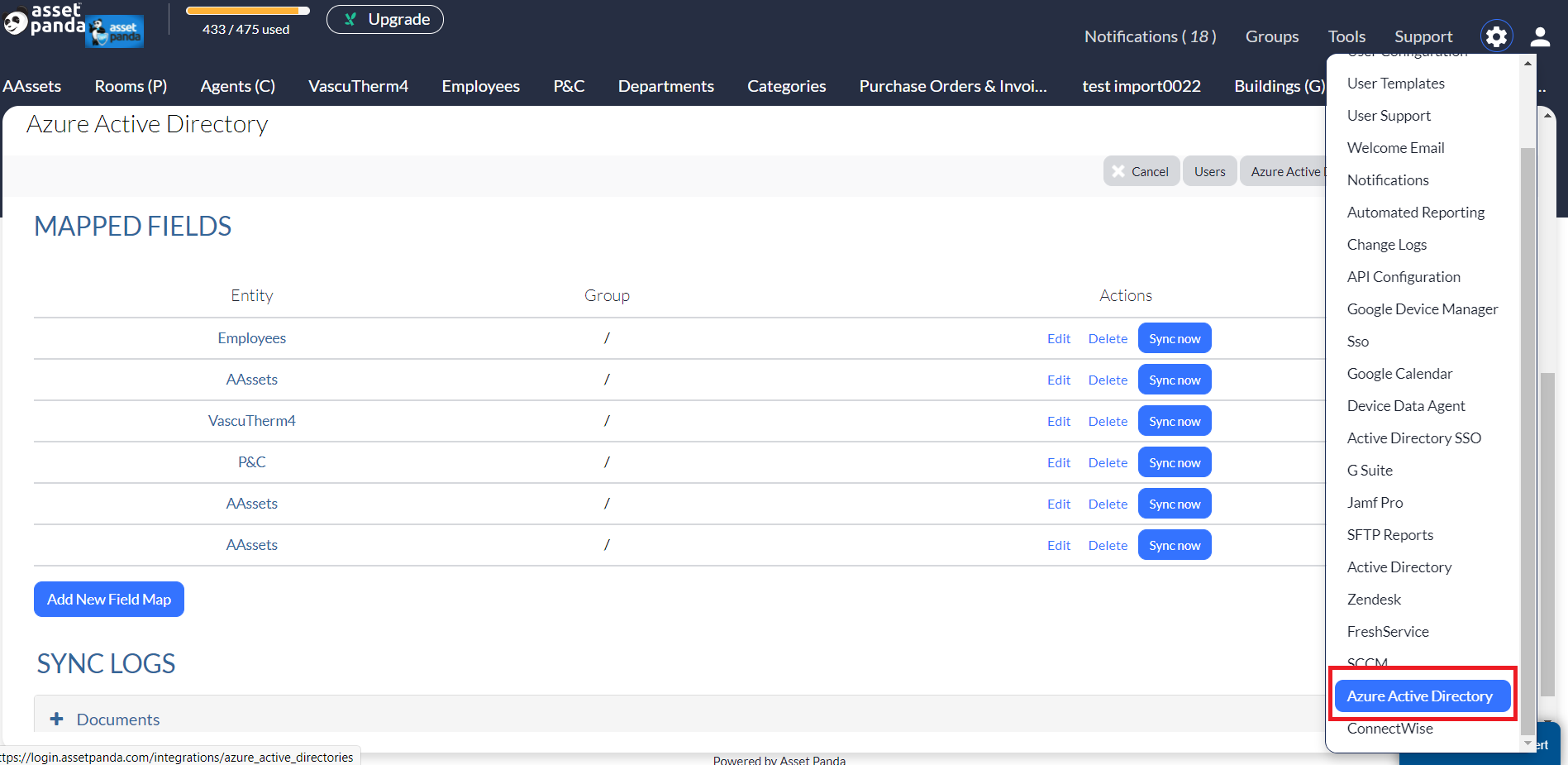

1. Click the configuration icon , and then select Microsoft Entra ID (or scroll down the Microsoft Entra ID page if you are already there and have completed all the steps in the previous sections).

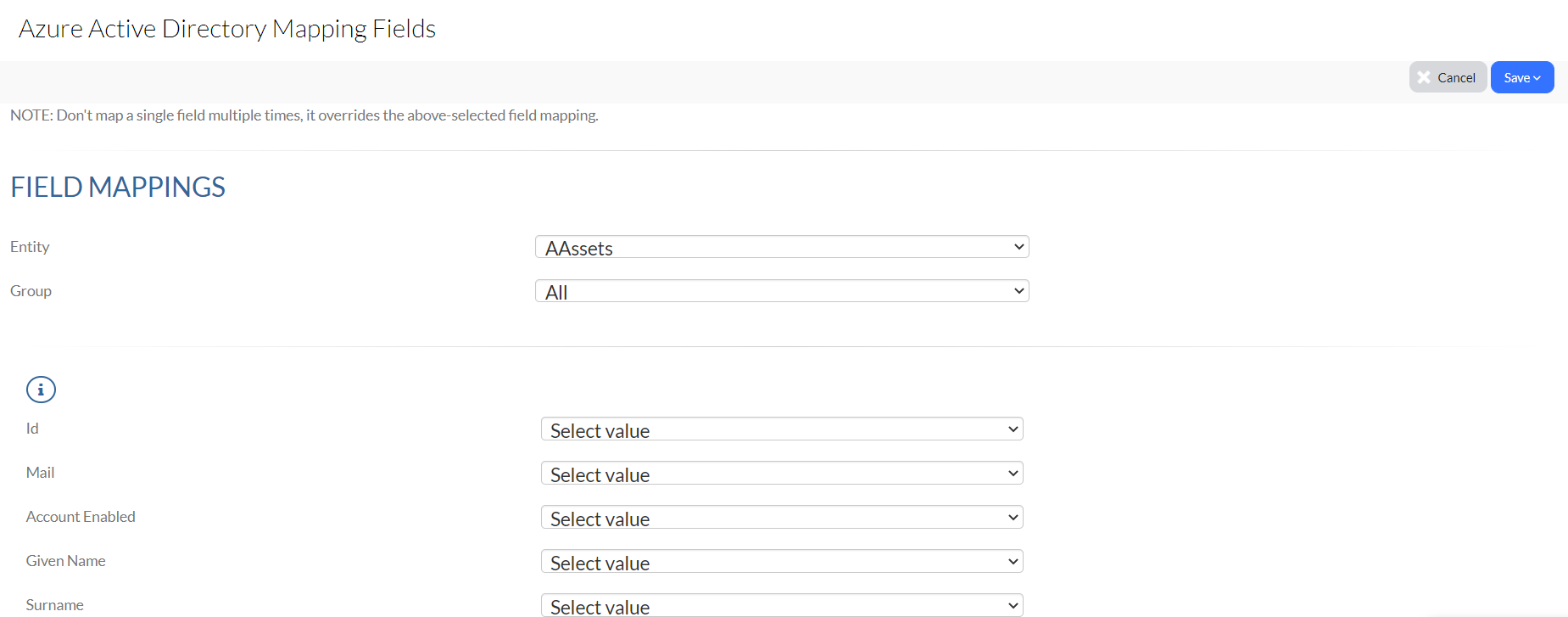

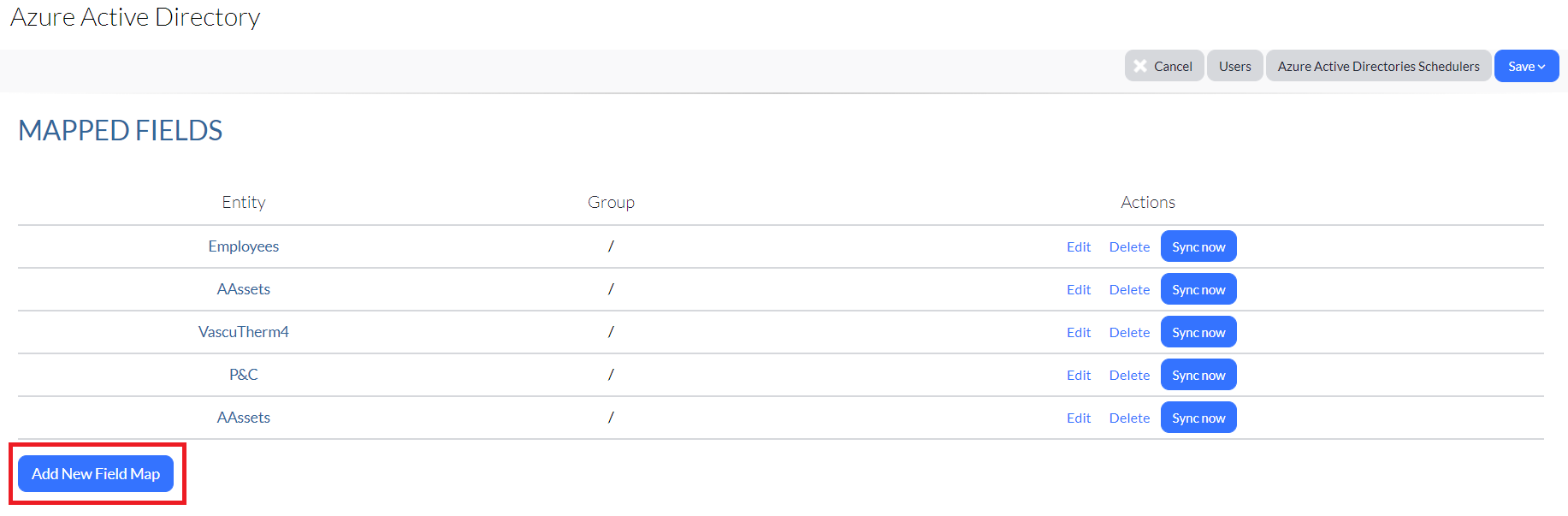

2. Navigate to the Mapped Fields section, and then click Add New Field Map.







3. Select the groups you wish to map into Asset Panda.







4. Click Save.

   You are redirected back to the Microsoft Entra ID page.

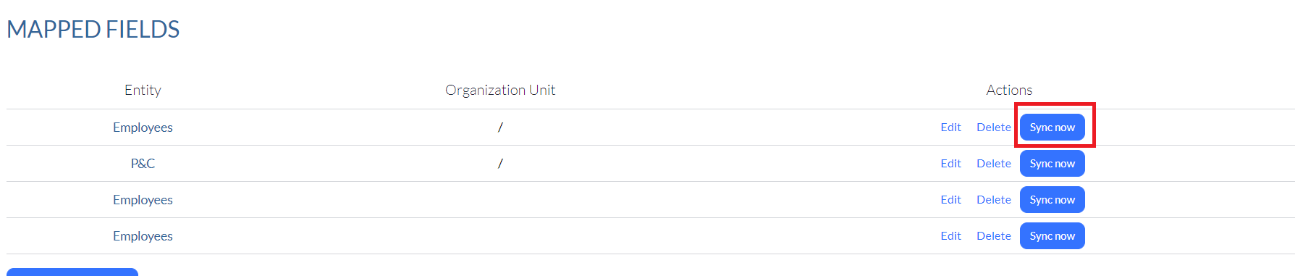

5. Scroll back to the Mapped Fields section, and then click Sync Now. (See, “Sync Individual Record” below if you wish to sync an individual record rather than a group.)







6. Your items begin to synchronize and you will receive an email once it is complete.



NOTE: All sync information can be viewed through the Sync Logs at the bottom of the Microsoft Entra ID page.





Sync Individual Record



If you wish to sync an individual record:

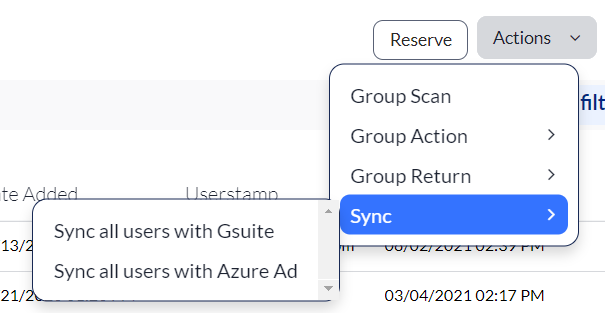

1. Click Actions when viewing a record.
2. Select Sync, and then select Sync all users with Microsoft Entra ID.



NOTE: All sync information can be viewed through the Sync Logs at the bottom of the Azure Active Director page.
